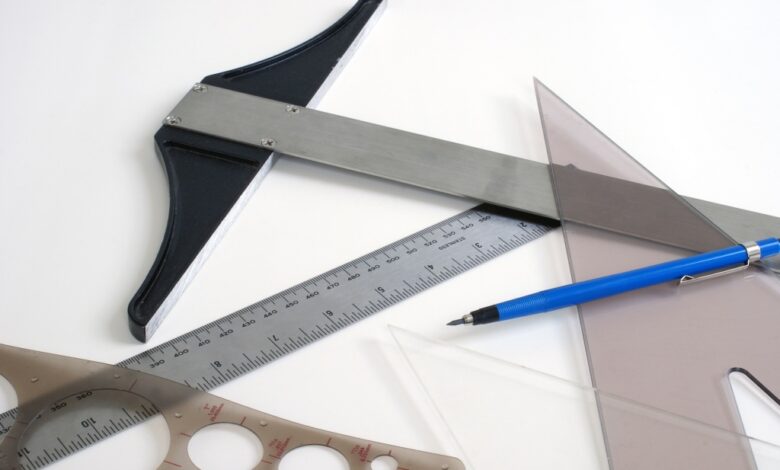

Whether or not you’re an artist, an architect, or carpenter, a T-square is a vital instrument on your work arsenal. Like an upgraded straightedge, this drawing instrument helps you draw correct, correctly positioned traces with ease. As its title implies, a T-square consists of a protracted ruler hooked up at a 90-degree angle to a large, straight-edged head. It helps be certain that your work is at all times aligned with the sides of your drawing floor, and it additionally allows you to draw parallel traces in little time. Enhance your drafting with one in every of our picks beneath.
1. Ludwig Precision Customary T-Sq.
The crosspiece of Ludwig’s T-square has a superb lip that lets you preserve it flush in opposition to your working floor and easily reposition it as wanted. That includes a big plastic head and skinny aluminum physique, it’s light-weight and just a little flexible, however it can serve you nicely if you happen to maintain it. The increments—in each inches and centimeters—are clear and marked in a method that makes them simple to learn with out an excessive amount of muddle.
2. Alvin Clear Edge T-Sq.
We’re drawn to the retro look of this T-square from Alvin, a fantastic possibility for drafting. Set completely sq. right into a black wooden head, the straightedge contains a gentle wooden physique with see-through acrylic edges for improved visibility, and the sides are barely raised above the floor for smudge-free outcomes. Not like our different picks, this one doesn’t have any measurements, however it’s an easy instrument for drawing clear traces precisely the place you need them. We like this 18-inch-long mannequin for on a regular basis use, however different sizes can be found.
3. Westcott Junior T-Sq.
If worth is extra vital to you than longevity or aesthetics, we suggest Westcott’s T-square, which is an easy, unfussy instrument to measure and draw straight traces. Its clear plastic physique makes it further simple to put markings precisely the place you need them. It additionally has a refined lip that permits it to slip simply in opposition to the facet of your drawing floor. As a result of it’s plastic, nevertheless, it might snap if dealt with with an excessive amount of stress. The measurements additionally generally tend to put on off with frequent use.
4. Alvin Stainless Metal Skilled Graduated T-Sq.
Made totally of metallic, Alvin’s T-square is our high decide for its sturdiness and reliability. Its tempered chrome steel physique is firmly hooked up to an aluminum head, assembly at an ideal proper angle. The pinnacle, barely offset, could be rested in opposition to the sting of your working floor to make sure correct alignment each time. This instrument comes at a premium worth, however it’s value it: Whereas cheaper T-squares can loosen over time and even warp, Alvin’s will keep its accuracy even with frequent use. We additionally like how the measurements are marked on the ruler: Each massive and small increments are labeled, with the foremost markings printed in a bigger font for quick visibility.
5. Mr. Pen T-Sq.
For individuals who would fairly use a T-square that lies flat to the drawing floor, Mr. Pen’s 12-inch T-square gives a superb steadiness of economic system, perform, and accuracy. Product of carbon metal, it has a black end with white, laser-printed measurements which can be simple to learn. The double-sided sq. metric measurements on one facet and and imperial measurements on the opposite. It’s heavy for its dimension, which helps when reducing paper or pictures.
